MIM- Aluminium alloy
Materialintroduction: The MIM process is used to producehigh-strength aluminum alloy products, the mechanical properties of thematerial are close to the plate, and it does not contain Sn and otherstrength-reducing elements. It is advantageous for the processing of small andcomplex products of aluminum alloy.
Elementcomposition:
|
Si |
Cu |
Mg |
Sn |
Al |
|
0.4~0.8 |
0.1~0.4 |
0.5~1.5 |
- |
Bal. |
Physicalproperties:
|
Properties |
Unit |
After heat treatment |
|
Density ρ |
g/cm3 |
>2.65 |
|
Hardness |
Hv |
100 |
|
Tensile strength Rm |
MPa |
200 |
|
Yield strength Rp0.2 |
MPa |
300 |
|
Elongation A10 |
% |
5 |

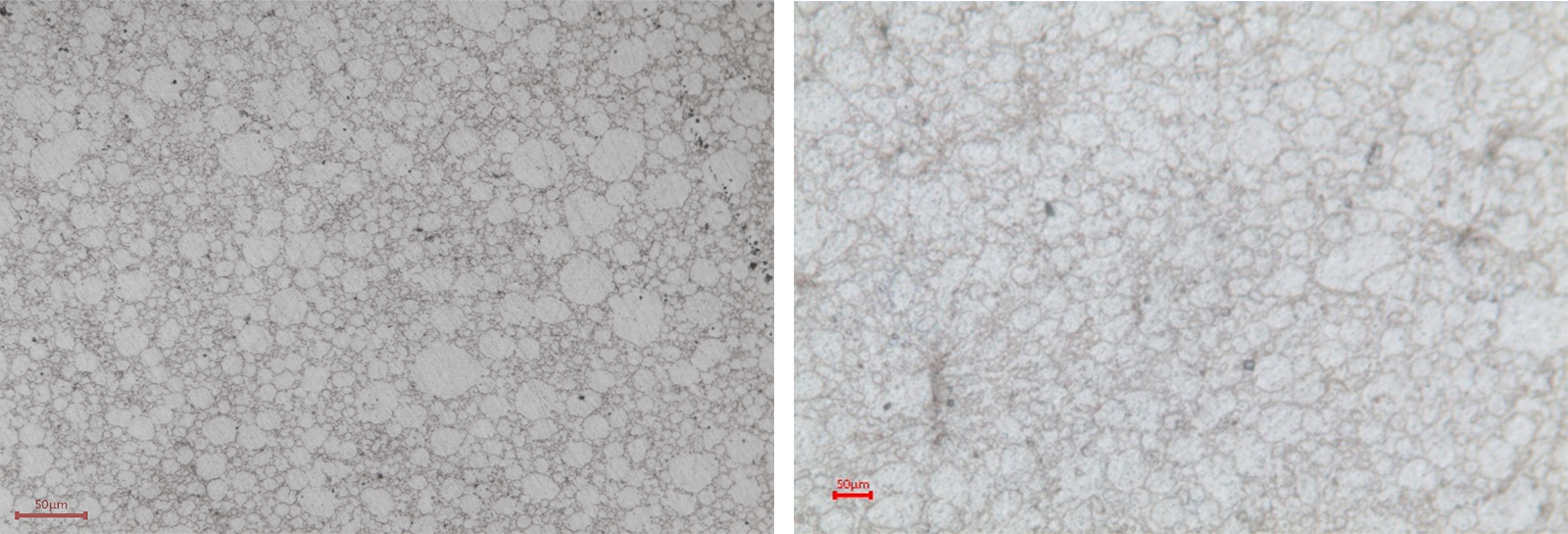

Metallography（×200）
Comparisonof the properties of different aluminum alloys
|
Material |
Tensile strength Rm Mpa |
Yield strength Rp0.2 Mpa |
Elongation |
Density g/cm3 |
Hardness |
|
Aluminum sheet (6061) （Thickness=1.5~3） |
290 |
240 |
7 |
2.75 |
|
|
die-cast aluminum (ADC12) |
230 |
- |
1 |
2.70 |
80 HBW |
|
MIM- Aluminum |
300 |
210 |
6.0 |
>2.65 |
100 Hv |
Comparisonof processing of complex shape aluminum alloy
|
Item |
Material cost |
Mass production cost |
Efficiency |
Accuracy |
Anodizing |
|
CNC |
Low |
High |
Low |
High |
Able |
|
Die casting |
Low |
Low |
High |
High |
Unable |
|
3D Printing（SLM） |
High |
High |
Low |
Low |
Able |
|
MIM-Al |
Low |
Low |
High |
High |
Able |
